UM-X
The control unit in a field housing for continuous level sensors
- Intrinsically safe electrical circuit with ATEX approval (Ex ia)
- Pump control (alternating)
- Continuous displaying the filling level
Overview

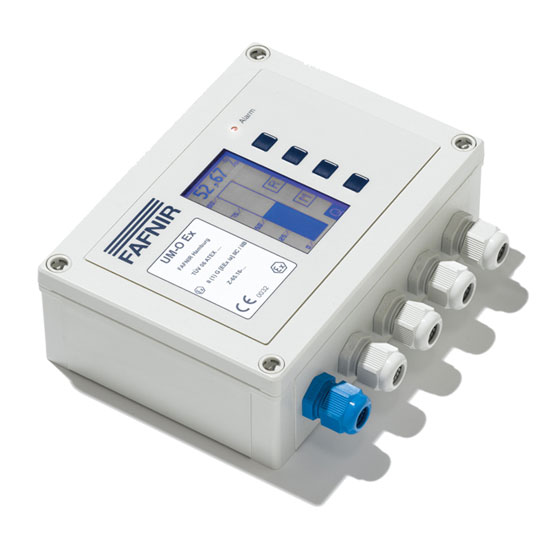

The control unit in a field housing for continuous level sensors
Standalone transducer with 5 relay outputs
With the UM-X level transducer in a field housing, we offer a convenient, stand-alone display for your level measurement. It has five relay outputs, all of which have freely configurable switching thresholds. The compact design and the possibility of connect directly to 230 V makes it easy to handle and install even outside a control cabinet.
Product Highlights
- The control unit in a field housing for continuous level sensors
- Easy menu-driven graphical user interface
- Can be used with all sensors with a 4-20 mA interface
- Intrinsically safe electrical circuit with ATEX approval (Ex ia)

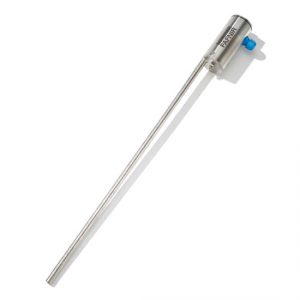

- Combined with TORRIX, approved as an overfill prevention fulfilling the German Water Resources Act (WHG)
- Pump control (alternating)
- Continuous displaying the filling level
- Filling levels can be displayed in mm, inches, % or mA
Specifications
Equipment Type |
Display
|
---|---|
Liquid |
Acids
Chemicals
Cryogenic Liquids
Fuel
Solvents
Wastewater
Water
|
Vessel |
Bulk Tank
Bypass
Intermediate Bulk Container (IBC)
Laboratory Bottle
Ship
Underground Storage Tank
Waste Container
|
Measuring range |
0.00 mm up to 25 000.00 mm
|
Process Connection |
None
|
Temperature |
-20.00 °C up to 50.00 °C
|
Certification |
ATEX
None
WHG
|
Signal output |
Relay
|
Power Supply |
115 VAC
230 VAC
24 VAC
24 VDC
|
Addtitional criteria |
Dry run protection
|
