3051 Differential Pressure Transmitter
- Warranty
- Up to 5-year limited warranty
- Rangedown
- Up to 150:1
- Measurement Range
- Up to 2000 psi (137,89 bar) differential
- Output
- Differential pressure, scaled variable
- Communication Protocol
- 4-20 mA HART®, WirelessHART®, FOUNDATION™ Fieldbus, PROFIBUS®, 1-5 V Low Power HART®
- Process Wetted Material
- 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST
- Diagnostics
- Basic Diagnostics, Power Advisory Diagnostics
- Certifications/Approvals
- SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE, hazardous location, see full specs for complete list of certifications
Overview

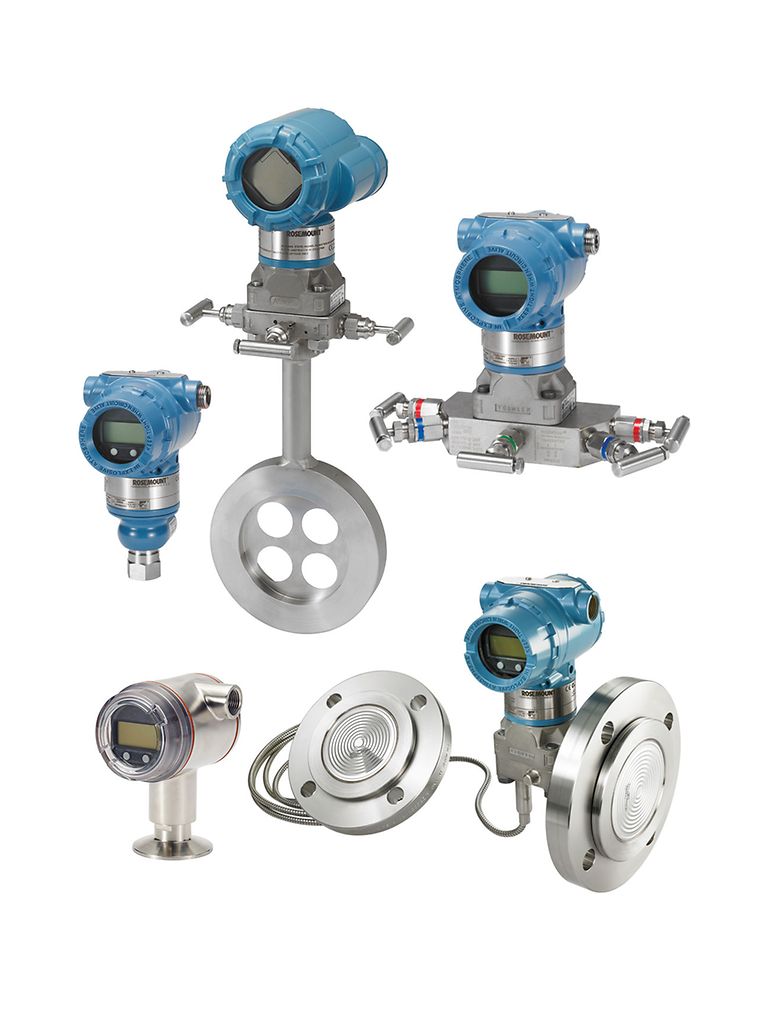

Enhance production and efficiency with the industry-proven Rosemount™ 3051, a reliable, ready-to-install, flow, level and pressure solution. The transmitter is optimized with a Local Operator Interface (LOI) and Power Advisory Diagnostics to reduce installation and commissioning time. These transmitters reduce downtime and meet tough process requirements, including hygienic applications. With wireless capabilities, these devices enhance monitoring of your entire operation and perform well even in remote and hard-to-reach locations.
Product Highlights
- Available pre-assembled to primary elements for an installation-ready flow solution that ensures optimal performance
- Complete flow assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation
- 10-year installed stability and 150:1 rangedown produce reliable measurements and wide application flexibility
- Local operator interface offers easy-to-use menus and built-in configuration buttons for streamlined commissioning
- Power Advisory diagnostics detect electrical loop integrity issues for reduced downtime
- SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
