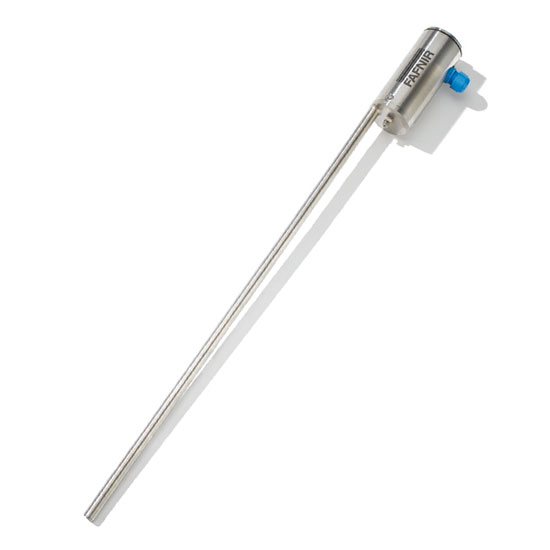

TORRIX For bypass applications with magnetic level indicator
The TORRIX bypass is the ideal sensor for level measurement in tanks with magnetic level indicators. The TORRIX is mounted on the outside of the bypass, and picks up the magnetic field and delivers the level inside the bypass, without any contact with the liquid. Many magnetic level indicators can be retrofitted with a TORRIX.
Highly Versatile Solution
The most versatile fuel level sensors in our range, it is easy to install and reliable throughout its lifetime. Forget complicated installations and time consuming and costly troubleshooting, TORRIX is very easy to use and to troubleshoot. With its high-precision magnetostrictive level sensors and measuring principle, it archives an accuracy of up to ± 0.3 mm, and is among the very best in its class.
Product Highlights
- Maximum length: 200 mm up to 6000 mm
- Process temperature up to 450 °C.
- SIL 2 (proven in use)
- ATEX and IECEx approval for use in Zone 0
Typical Applications
Equipment Type |
Magnetostrictive Level Measurement
|
---|---|
Liquid |
Acids
Chemicals
Fuel
Solvents
Water
|
Measuring range |
200.00 mm up to 6 000.00 mm
|
Stem diameter |
12.00
|
Process Connection |
None
|
Temperature |
-65.00 °C up to 450.00 °C
|
Certification |
ATEX
IECEx
None
|
Signal output |
4-20 mA
HART
|
Power Supply |
10 to 30 VDC
15 VDC
24 VDC
|
Addtitional criteria |
Dry run protection
Electropolished
|
