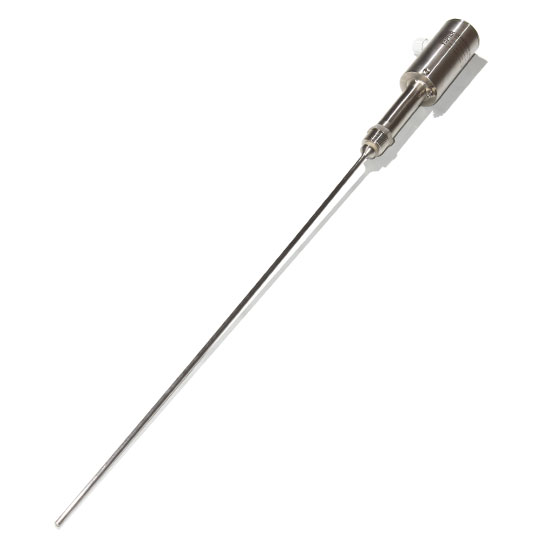

CONDURIX MONO
For conductive tanks
Even in sticky or dirty liquids, this sensor delivers reliable information about the level in the tank. Due to the small sensor head and the diameter of only 6 mm, you can use the CONDURIX almost anywhere. The sensor even functions in highly viscous liquids. The CONDURIX can be used in all electrically conductive liquids with a conductance ≥ 1 μS/cm. The one tube probe can be used in all conductive tanks.
Overview
Potentiometric Level Sensor
Even in sticky or dirty liquids, this potentiometric sensor delivers reliable information about the level in the tank. Due to the small sensor head and the diameter of only 6 mm, you can use the CONDURIX almost anywhere. The level indicator sensor even functions in highly viscous liquids. The CONDURIX can be used in all electrically conductive liquids with a conductance ≥ 1 μS/cm
Product Highlights
- Maximum length: 4000 mm
- Sensor tube diameter: starting at 6 mm
- Process connection with all standard fittings and flanges
- Process temperature up to + 125 °C
- Fast response time of 200 ms
Typical Applications
Equipment Type |
Potentiometric Level Measurement
|
---|---|
Liquid |
Acids
Chemicals
Solvents
Wastewater
Water
|
Vessel |
Bulk Tank
Underground Storage Tank
|
Measuring range |
150.00 mm up to 4 000.00 mm
|
Stem diameter |
4.00 mm up to 12.00 mm
|
Process Connection |
Fitting
Flange
|
Temperature |
-40.00 °C up to 200.00 °C
|
Pressure |
-1.00 bar up to 100.00 bar
|
Certification |
ATEX
None
|
Signal output |
4-20 mA
HART
|
Power Supply |
10 to 30 VDC
15 VDC
24 VDC
|
Addtitional criteria |
Dry run protection
Electropolished
|
