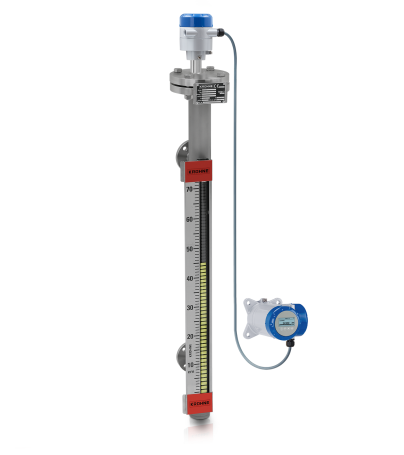

BM 26 F2200
Magnetic bypass level indicator with guided radar (TDR) for liquid level applications
- Continuous, redundant measurement using two measurement principles in one device
- Measuring range: 0.3…5.5 / 1…18 ft (longer on request)
- Density: 0.5…3 kg/l / 31…187 lb/ft3
- -50…+300°C / -58…+570°F; -1…100 barg / -14.5…1450 psig
Overview
The BM 26 F2200 combines the BM 26 A magnetic level indicator with the OPTIFLEX 2200 guided radar (TDR) level transmitter. The OPTIFLEX 2200 measures level reliably and the BM 26 A provides level indication. This way, the device permits a local redundant measurement where the measuring results of the TDR guided radar can be checked against those of the magnetic level indicator.
Product Highlights
- Measures down to dielectric constant of Ɛr 1.4
- Housing is removable under process conditions
- Option: Remote housing with display/keypad up to 100 m / 328 ft
- PACTwareTM and DTMs (full capability) included as standard
- Optional special materials, hazardous area approvals, limit switches and reed chain transmitters
- 4…20 mA/HART®, Foundation Fieldbus or PROFIBUS PA outputs
- Rugged stainless steel design: low or no maintenance
- Flaps housed in a hermetically sealed Pyrex®glass tube (IP68 / NEMA 6-6X)
Typical Applications
- Storage and medium-pressure process tanks
- Level applications in hazardous and non-hazardous areas
- Applications requiring a redundant measurement
