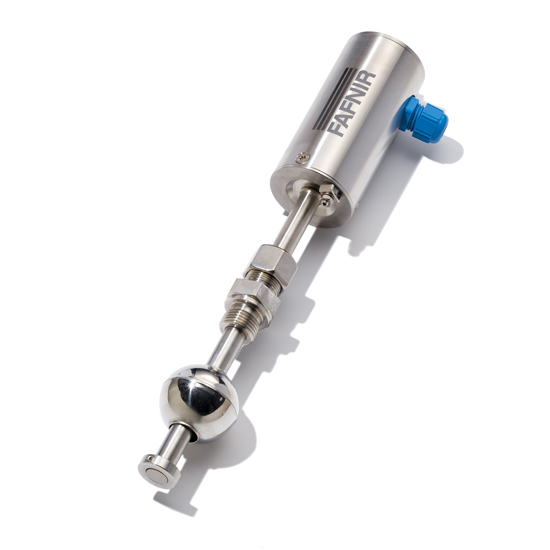

TorrixOur standard solution for most applications
TORRIX is ideally suited for measuring in all non-adhesive liquids and almost all tank geometries. There is no need to adjust the sensor to the liquid or the shape of the tank. Another advantage is that there are no dead zones in the upper and lower areas. The starting point of the measurement is only defined by the size of the float; therefore the entire volume can be measured and used.
Highly Versatile Solution
The most versatile fuel level sensors in our range, it is easy to install and reliable throughout its lifetime. Forget complicated installations and time consuming and costly troubleshooting, TORRIX is very easy to use and to troubleshoot. With its high-precision magnetostrictive level sensors and measuring principle, it archives an accuracy of up to ± 0.3 mm, and is among the very best in its class.
Product Highlights
- Length: 100 mm up to 6000 mm
- All standard fittings and flanges available
- Process temperature up to 450 °C.
- Process pressure up to 120 bar
- SIL 2 (proven in use)
- ATEX and IECEx approval for use in Zone 0
Specifications
-
Equipment Type Magnetostrictive Level MeasurementLiquid AcidsChemicalsFuelSolventsWaterVessel Bulk TankBypassIntermediate Bulk Container (IBC)Laboratory BottleRoad TankerShipUnderground Storage TankWaste ContainerMeasuring range 100.00 mm up to 6 000.00 mmStem diameter 6.00 mm up to 12.00 mmProcess Connection FittingFlangeNoneTemperature -65.00 °C up to 450.00 °CPressure -1.00 bar up to 120.00 barCertification ATEXIECExNoneWHGSignal output 4-20 mAHARTPower Supply 10 to 30 VDC15 VDC24 VDCAddtitional criteria Dry run protectionElectropolishedOffers extra-high accuracy
